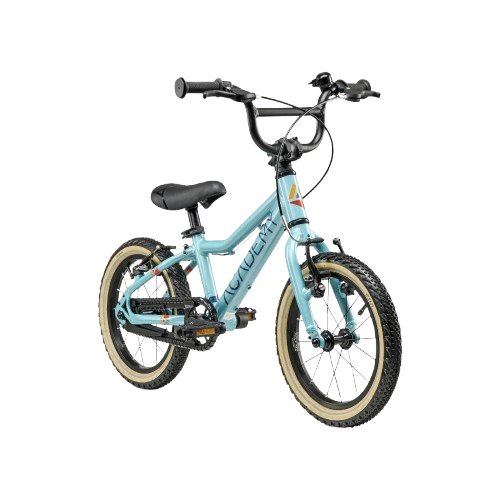

Bike Academy Grade 2 Ocean 14" - 2024

• Wheel size: 14”
• Seat tube length: 205 mm
• Seat angle: 68,0°
• Frame head tube length: 90 mm
• Steering angle: 68,0°
• Horizontal top tube length: 350mm
• Lower triangle length: 267mm
• Wheelbase: 631mm
• Minimum saddle height: 410mm
• Maximum saddle height: 500mm
• Crank arm length: 90mm

Technical details

• Rims: 14“ x 1.5” x 16H, aluminum, black color
• Rear hub: Aluminum, 14G/16H, black
• Front hub: Aluminum, 14G/16H, black
• Wheel size: 14”
• Tires: VEE TYRE Speedster 14 “x1.50 (40-254), reflective stripes, 72 TPI
• Fork: aluminum
• Handles
• Bike black
• Handlebars: BMX style 470 mm
• Seatpost 25.4mm aluminum
• Pedals: 95x80x23mm, ball bearing, black with reflectors, 9/16 thread
• Number of gears: AKADEMY 1-speed crankset 25T, 90mm, Aluminum
• 15T gears
• Front brake: V-brake, aluminum
• Rear brake: V-type brake, aluminum
• Brake lever: Composite, black
• Weight: 5.30 kg
• Frame shape: Diamond kink
• Frame height: 21cm
• Frame material: Triple shaded aluminum
